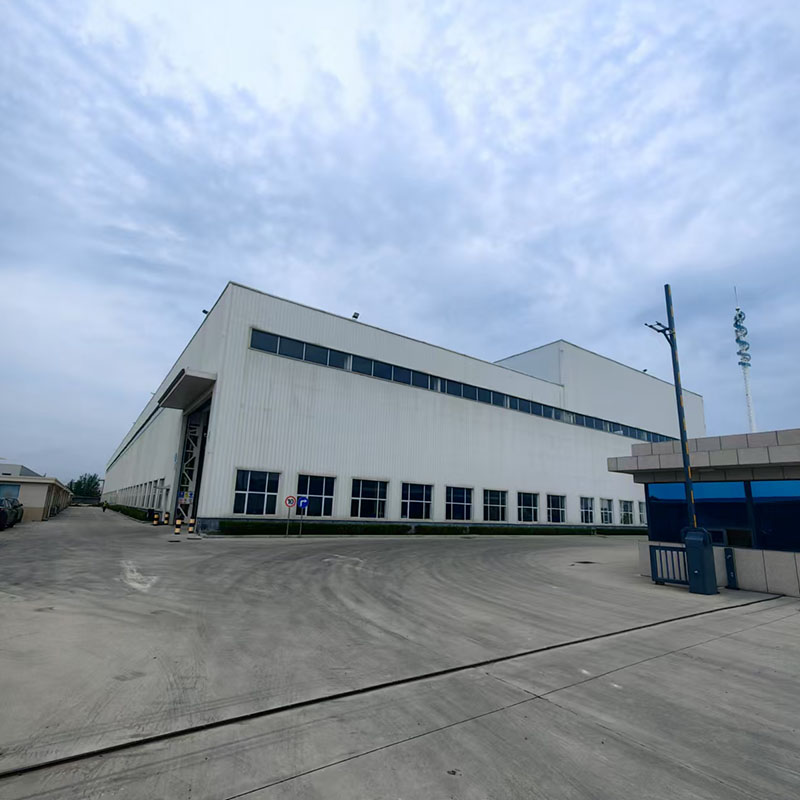

A steel-structured factory building primarily consists of steel columns, steel beams, steel trusses, a steel roof, and walls. The walls can be constructed of either brick-concrete or steel. Steel-structured factories have a smaller internal column area, which increases usable floor space and has become popular with many manufacturers in recent years. So, what are the main components of a steel-structured factory building? Let's learn more with LWY!
The steel frame system of a steel-structured factory building includes steel columns, steel beams, beam-column spacing, beam-beam spacing, column-foundation connection plates, pads, column splice plates, and beam splice plates. Together, these components form the basic framework of the factory building, providing a solid foundation for subsequent construction.
The inter-column support system includes inter-column support cross braces, scissor braces, horizontal rigid ties, and connection plates at the connection to the frame columns. These support structures enhance the stability of the factory building.
The roof support system consists of horizontal roof braces, horizontal rigid ties, and connection plates at the connection to the frame beams. These support structures ensure the stability and safety of Steel Structure Factory roofs.
The roof maintenance system includes roof C-section steel, roof purlin tie rods, roof purlin rigid tie rods, corner braces, roof purlin brackets, corner brace-to-roof beam connection plates, and roof tiles. These materials protect the roof from external factors.
The wall maintenance system includes wall C-section steel, wall purlin tie rods, wall purlin rigid tie rods, wall purlin brackets, gable columns, gable column-to-frame beam connection points, window frames, door frames, and the connection points between door and window frames and wall beams, as well as wall tiles. These materials protect the wall from external factors.
The crane beam system consists of the crane beam, car stops, crane beam-to-frame column connection points, brake beams, rails, and rail clamps. These components provide critical support for crane operations and are essential components of the Steel Structure Factory.
