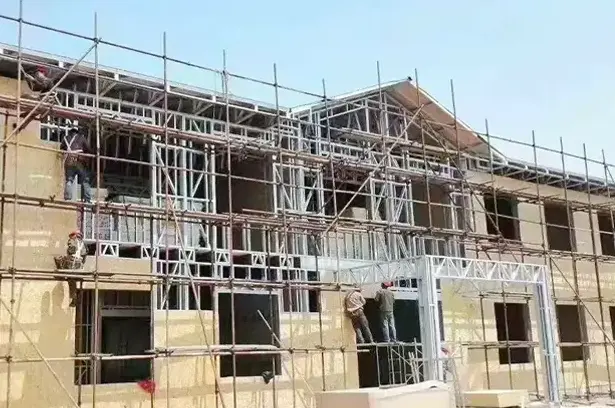

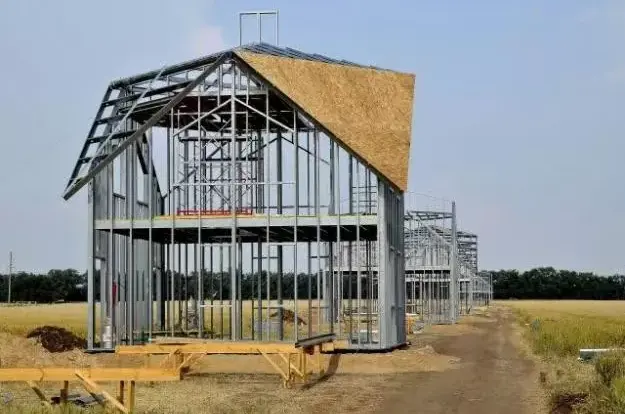

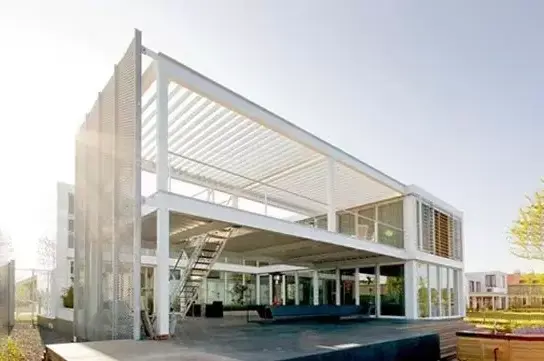

Light steel structure housing is a residential building built with light steel keels made of hot-dip galvanized steel strips through cold rolling process as the main load-bearing structure, combined with thermal insulation materials and various maintenance plates, and built through professional production equipment and construction technology. Its steel is generally thin in thickness, but high in strength, with good mechanical properties, and can provide reliable structural support for the house.
Light steel structure housing is a residential building built with light steel keels made of hot-dip galvanized steel strips through cold rolling process as the main load-bearing structure, combined with thermal insulation materials and various maintenance plates, and built through professional production equipment and construction technology. Its steel is generally thin in thickness, but high in strength, with good mechanical properties, and can provide reliable structural support for the house.
● The light steel structure system has clear force, and the components are reliably connected by high-strength bolts or welding, and have good integrity. The light steel keel itself is light, but it can carry a large load. Compared with traditional brick-concrete structures, its wind and earthquake resistance are better. When an earthquake occurs, the light steel structure can effectively dissipate seismic energy, reduce the degree of structural damage, and ensure the life safety of residents by virtue of its flexible structural characteristics.
● The material of the steel is uniform, the mechanical properties are stable, and its strength can be accurately controlled according to the design requirements, so the safety and reliability of the structure are higher. Unlike traditional building materials, which have problems such as uneven materials and unstable quality, the quality of light steel structures is easier to guarantee.
● The main components of light steel structure houses are standardized in factories, and the production process can use advanced automated equipment with high precision and high efficiency. The components produced are accurate in size and stable in quality, and then transported to the construction site for rapid assembly. This industrialized construction method greatly shortens the construction period. Compared with traditional on-site masonry construction, it can generally shorten the time by 30% - 50%, allowing owners to move in faster.
● Due to the standardized production of components, on-site construction personnel only need to quickly assemble according to the design drawings, and the technical requirements for workers are relatively low, which reduces labor costs. At the same time, industrialized production can achieve large-scale construction, which is convenient for efficiently providing a large number of residential products to meet the housing needs of society.
● During the construction process of light steel structure houses, there are fewer wet operations on site, the amount of construction waste generated is also greatly reduced, and the pollution to the environment is small. At the same time, steel is a recyclable material. When the service life of the house is over, most of the steel can be recycled and reused, which is in line with the concept of sustainable development.
● In terms of thermal insulation, light steel structure houses can be matched with efficient thermal insulation materials, such as rock wool, polystyrene foam boards, etc., which can effectively prevent the transfer of heat, keep the house warm in winter and cool in summer. This greatly reduces the energy consumption of the house during use, and can save 30% - 50% of energy compared with traditional houses, reduce dependence on non-renewable energy, and reduce carbon emissions.
● The internal space division of the light steel structure system is not restricted by traditional load-bearing walls, and residents can flexibly design and transform the interior space according to their needs and preferences. It is easy to create a spacious open living room, and it is also possible to adjust the number and layout of bedrooms according to changes in family population to better meet the personalized living needs of different families. This flexibility provides more creative space for interior design, so that the house can better fit the lifestyle of the residents.
As a new type of residential building system with many advantages, Liweiyuan light steel structure houses are in line with the development direction of green, low-carbon and industrialization in my country's construction industry. Although there are some challenges in the promotion and application process, such as high cost, talent shortage and cognitive misunderstanding, with the continuous advancement of technology, policy support and gradual cultivation of the market, light steel structure houses are expected to play a more important role in my country's residential construction in the future, providing people with more energy-saving, environmentally friendly, comfortable, safe and personalized living space. We should actively promote the research and application of light steel structure housing technology, improve relevant standards and specifications, strengthen talent training and market publicity, overcome difficulties in the development process, and promote the healthy development of the light steel structure housing industry.
Liweiyuan light steel structure houses have been widely used in modern industrial buildings due to their flexibility, economy and rapid construction. Our factory designers can provide a variety of design suggestions and plans from design drawings, design plans, construction plans, etc. according to customer needs.
Main materials of Liweiyuan light steel structure houses
Item Material Material details
Steel frame

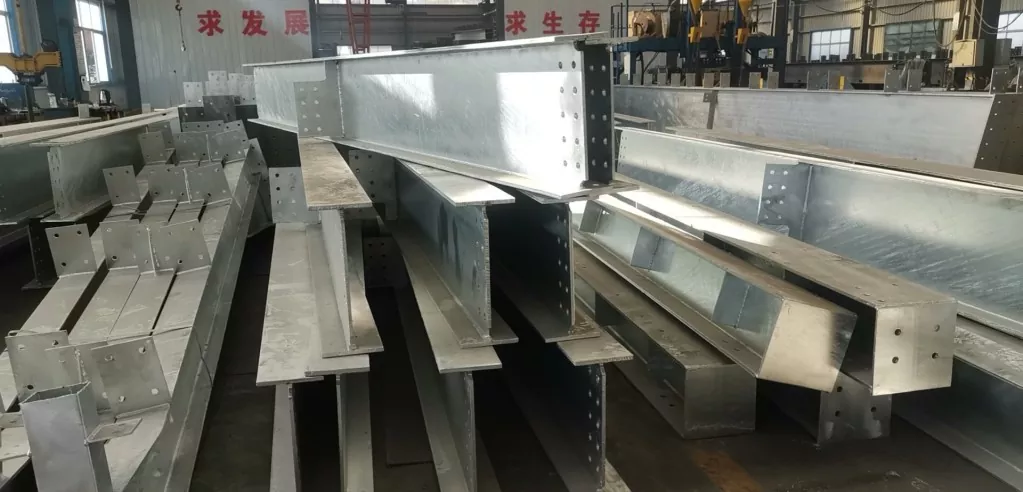

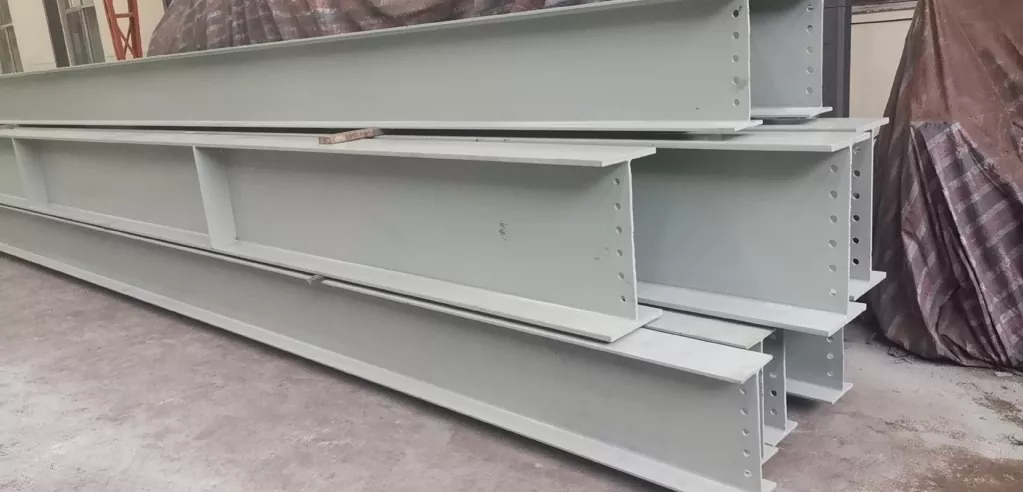

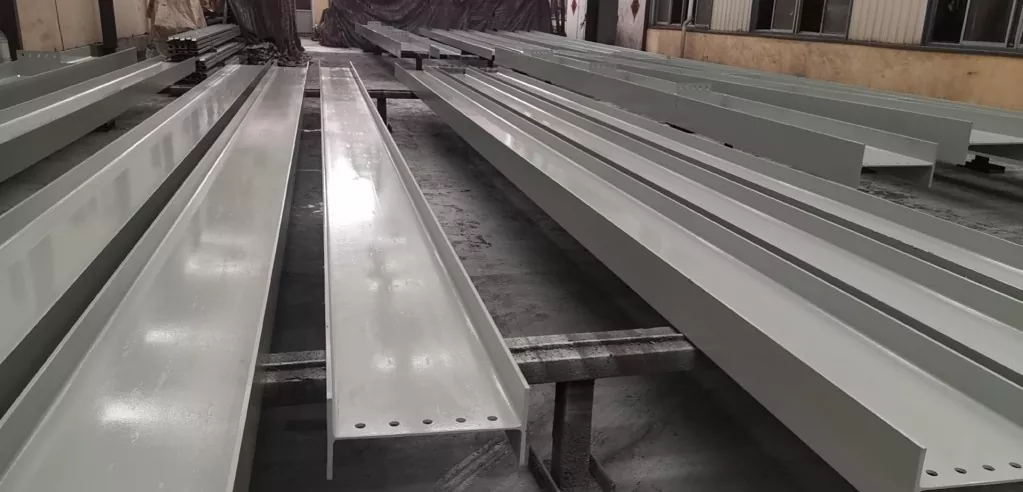

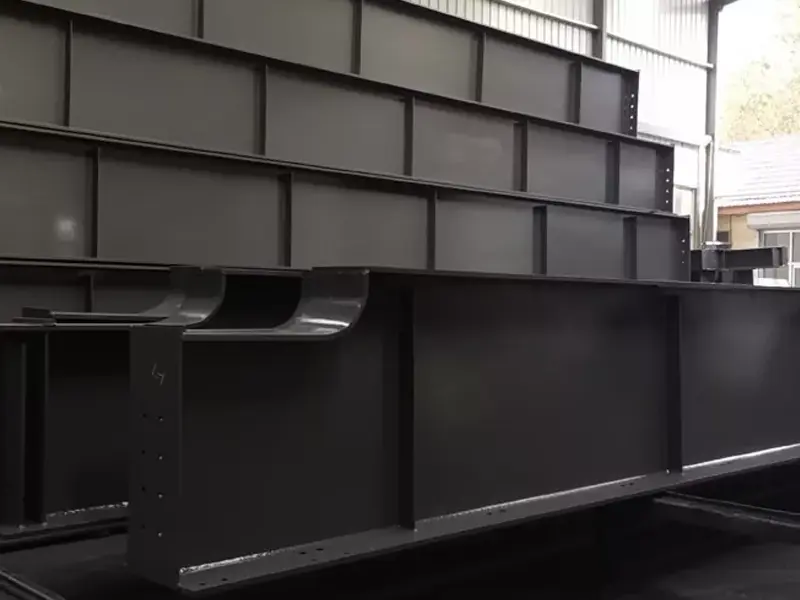

H-shaped steel columns and beams Q355B, A36, A572 steel, painted or galvanized
Crane beams Q355B, A36, A572 steel, painted or galvanized

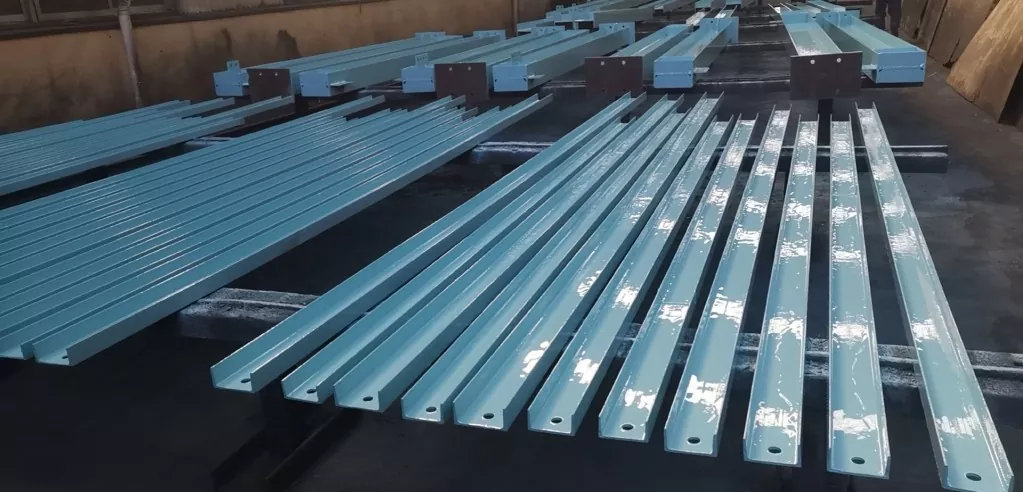

Secondary support Roof purlin Q235B C/Z steel galvanized
Wall purlin Q235B C/Z steel galvanized
Tie clip Q235, φ89*3 round steel pipe
Knee bracket Angle steel, Q235, L50*4
Roof horizontal support φ20, Q235B steel bar, painted or galvanized
Column vertical support φ20, Q235B steel bar, painted or galvanized
Casing φ32*2.0, Q235 steel pipe
Tie rod Φ10 round steel Q235
Roof and wall
Protection system Wall and roof panels Corrugated steel sheet/sandwich panel
Gutters Color steel sheet/galvanized steel sheet/stainless steel
Trim and flash Color steel sheet
Downspout PVC
Self-tapping screws
Fasteners system Anchor bolts Q235 steel
High-strength bolts Its specifications are determined according to the steel structure design.
Ordinary bolts
Nuts
Doors Choose according to requirements, can be EPS doors, windproof doors, high-speed rolling doors, industrial sliding doors, etc.
If you are interested in our products, please let us know the following information so that we can design.
1. Purpose: garage, warehouse, workshop, showroom, etc.
2. Location: In which country will it be built?
3. Local climate: wind speed, snow load (maximum wind speed)
4. Dimensions: length * width * height
1. Are you a manufacturing plant or a trading company?

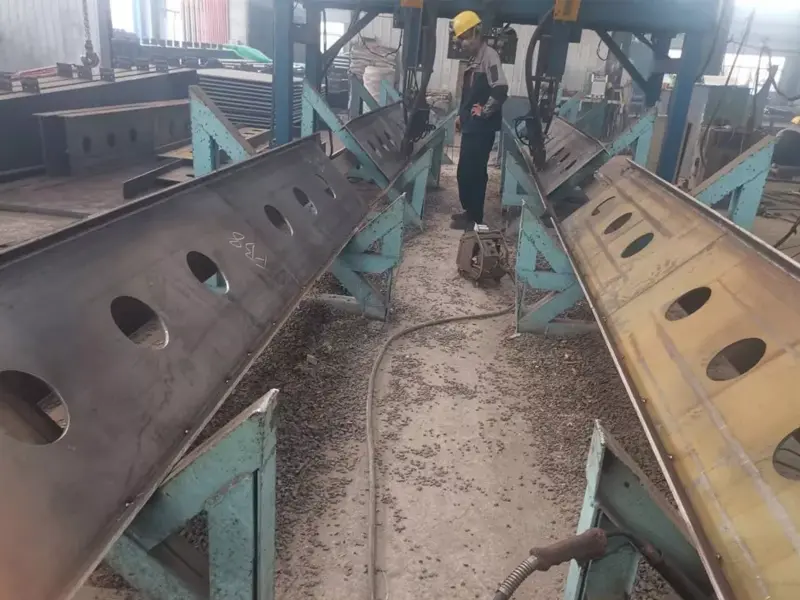

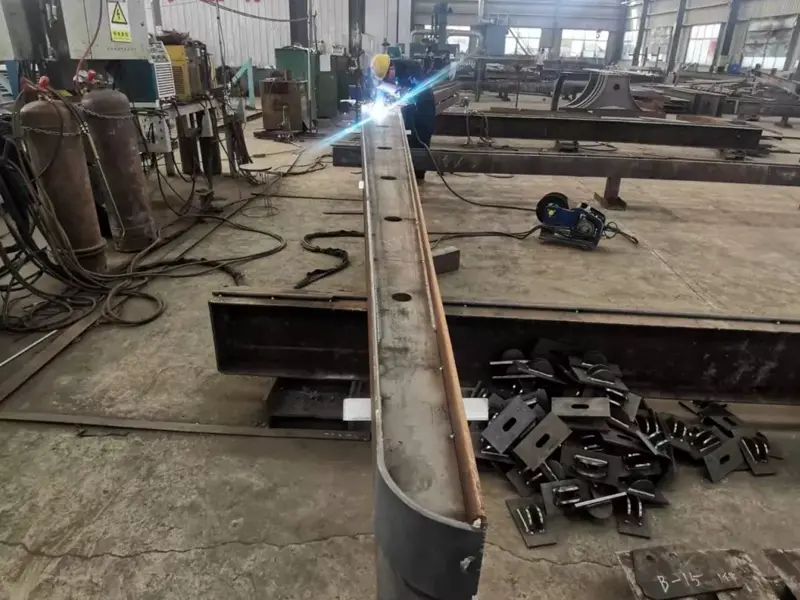

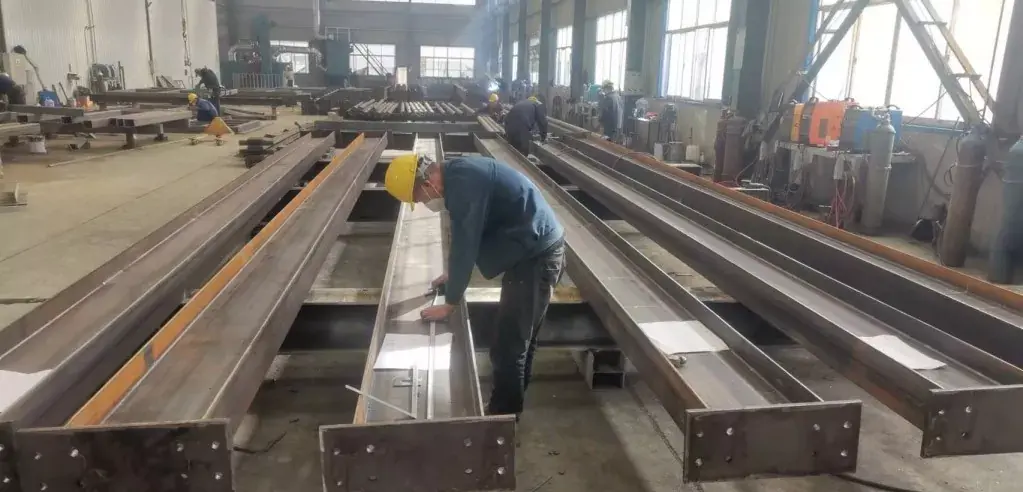

We are a manufacturing plant. You are welcome to visit us at any time. In the workshop, there is a complete and advanced system of steel structure and plate manufacturing equipment. So we can ensure good quality and competitive price.
2. How is your quality control?
Our products have passed EU CE certification, quality ISO9001:2016. We have dedicated quality inspectors to inspect the whole process of products.
3. Can you provide design services?
Yes, we have a team of engineers who can design for you according to your requirements. Building drawings, structural drawings, processing details and installation drawings, and let you confirm at different times of the project.
4. What is the delivery time?
The delivery time depends on the size and quantity of the building. Generally within 30 days after receiving the payment. Large orders are allowed to be shipped in batches.
5. Do you provide installation services?
We will provide you with detailed construction drawings and construction manuals to help you build and install the building step by step.
6. What is the payment term?
30% deposit and 70% balance before shipment.
7. How to get a quote from you?
You can contact us by email, phone, WhatsApp, etc. 24*7, and you will get a reply in any time
