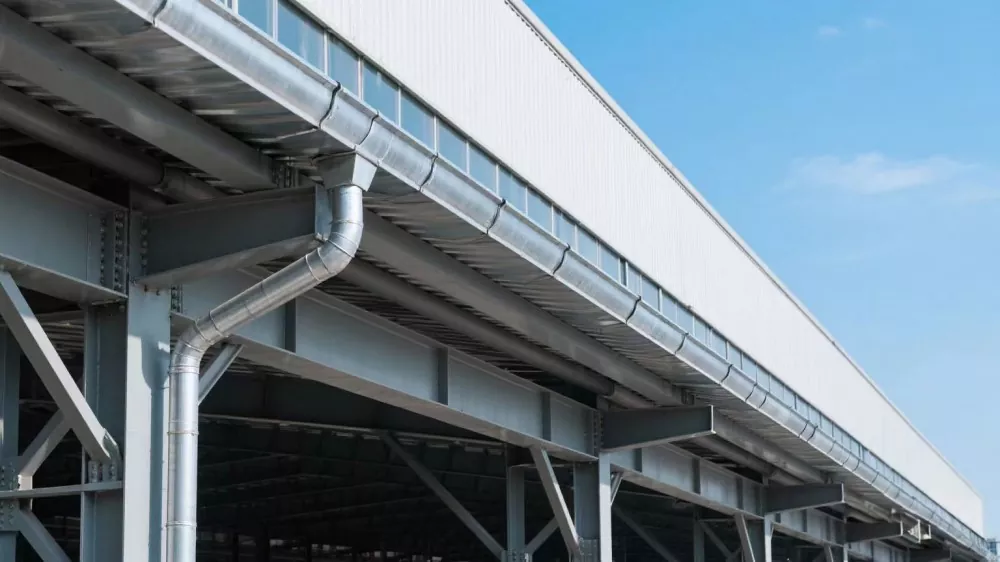

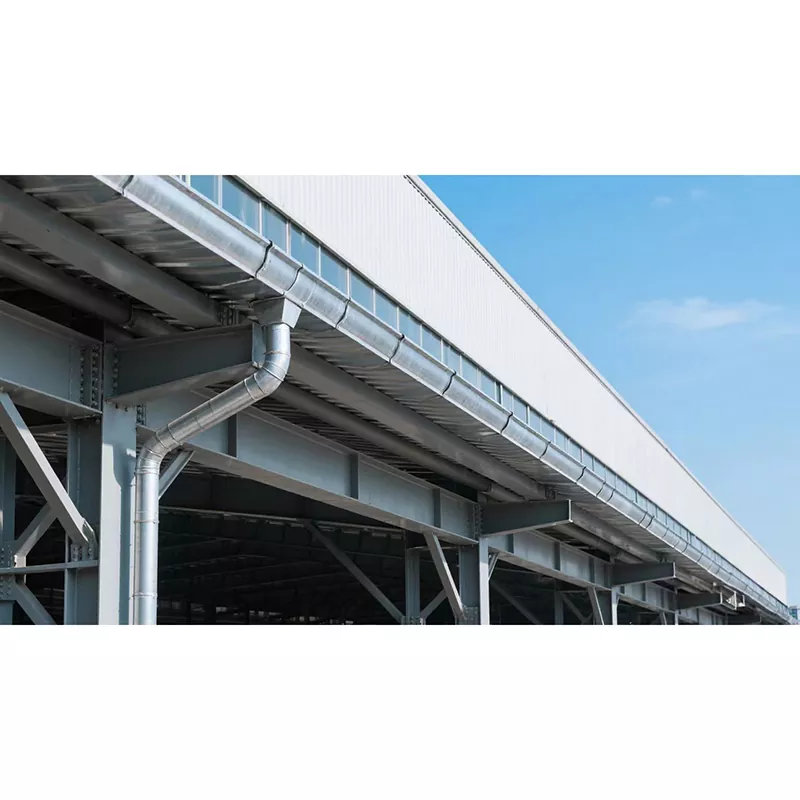

Steel Structure Gutters are a crucial component of a building's roof drainage system. Their primary function is to collect rainwater from the roof, direct it into vertical pipes, and then discharge it to the outdoor drainage system, preventing it from directly eroding walls or soaking foundations. Liweiyuan's product design and installation are characterized by high strength and light weight, ensuring smooth drainage and exceptional durability.
Steel Structure Gutters are a crucial component of a building's roof drainage system. Their primary function is to collect rainwater from the roof, direct it into vertical pipes, and then discharge it to the outdoor drainage system, preventing it from directly eroding walls or soaking foundations. Liweiyuan's product design and installation are characterized by high strength and light weight, ensuring smooth drainage and exceptional durability.
Liweiyuan's Steel Structure Gutter is made of corrosion-resistant and impact-resistant materials.

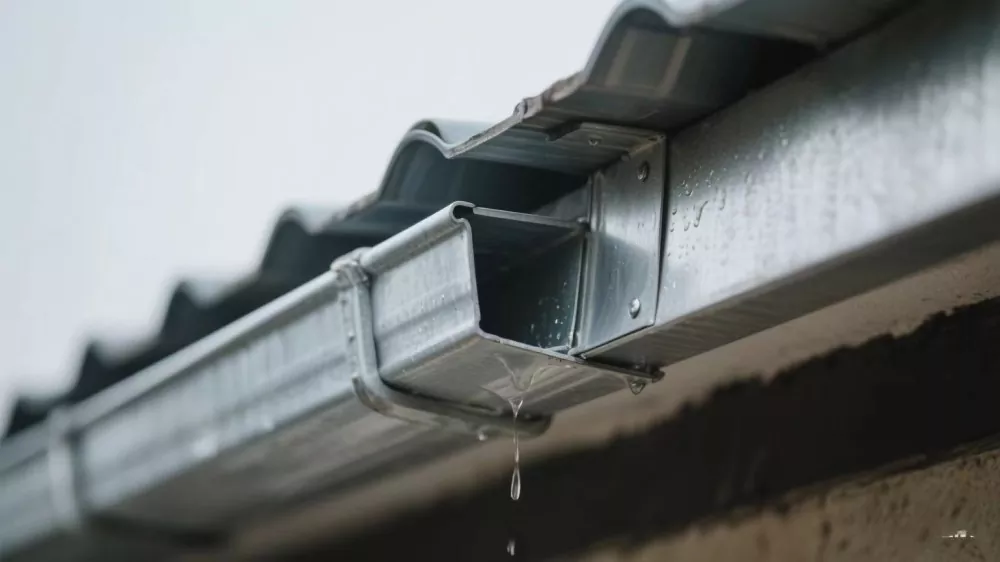

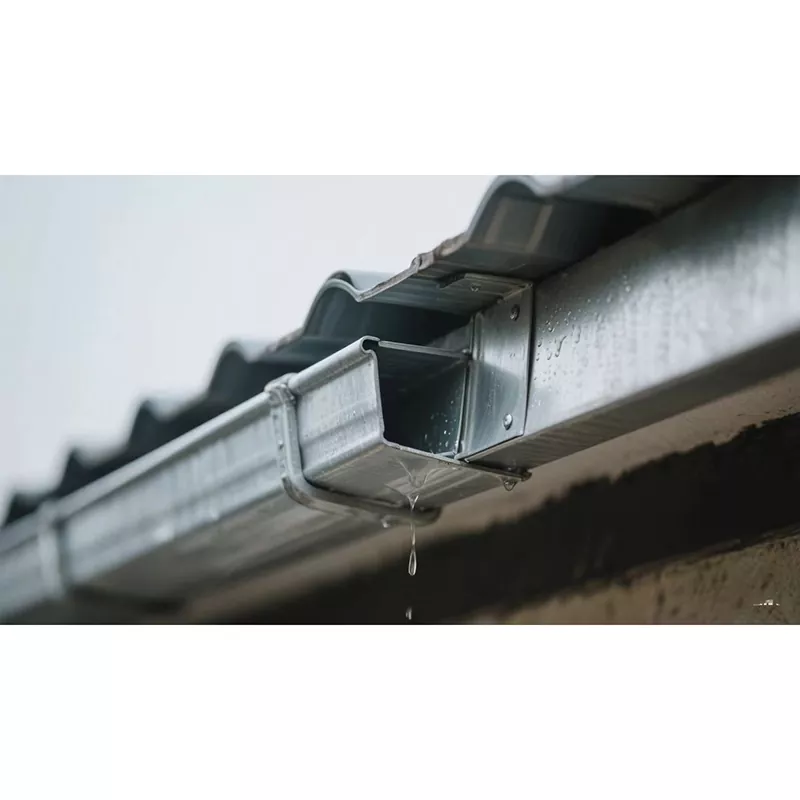

Our product is hot-dip galvanized, offering excellent corrosion resistance, low cost, and a long service life. Available in thicknesses of 1.5-2.5 mm, it's suitable for most applications.
Made of stainless steel, this product offers corrosion resistance and is particularly suitable for coastal or humid environments. Available in thicknesses of 1.0-2.0 mm, it offers a higher price but a long service life.

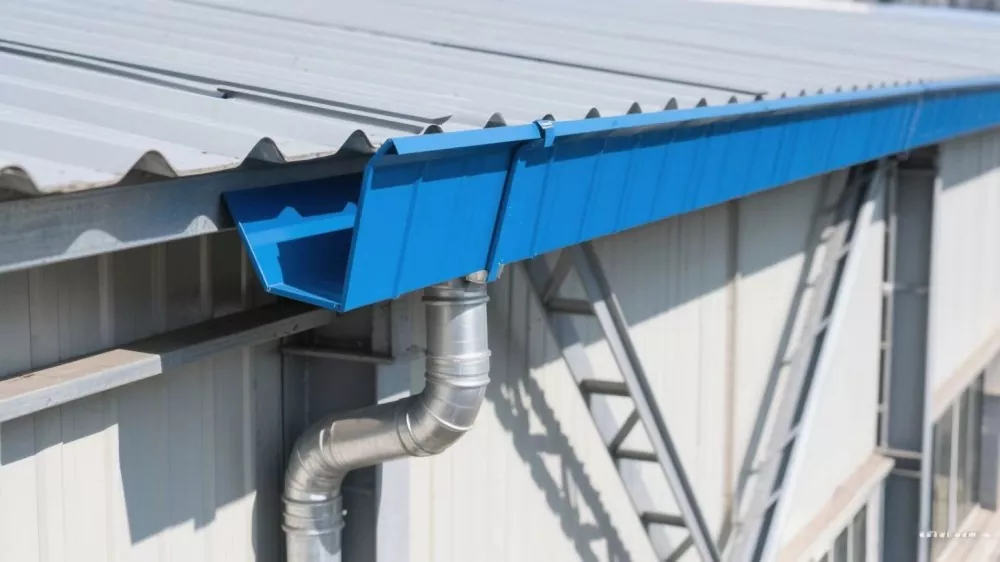

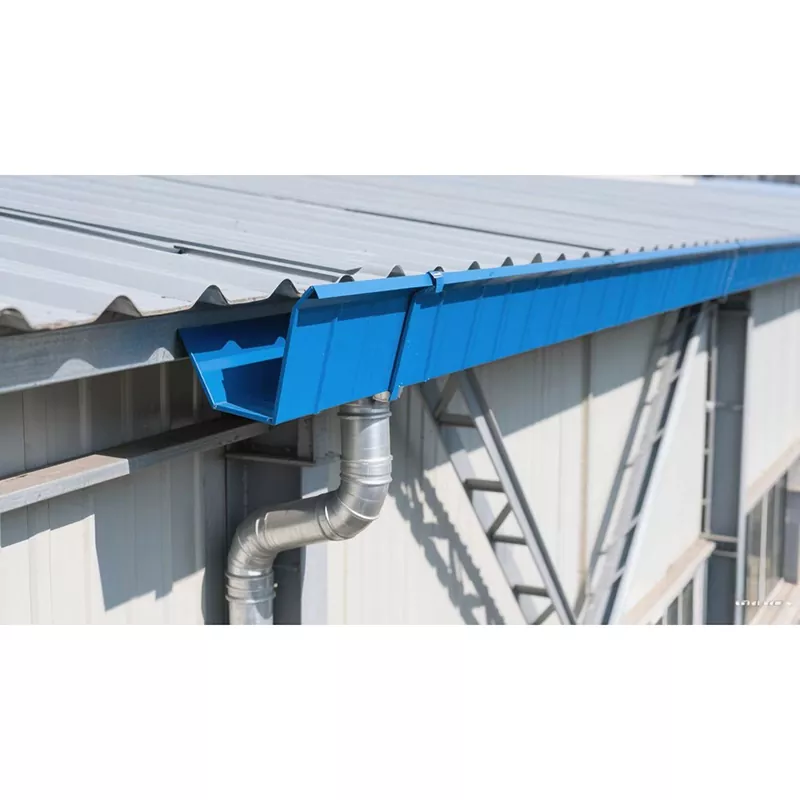

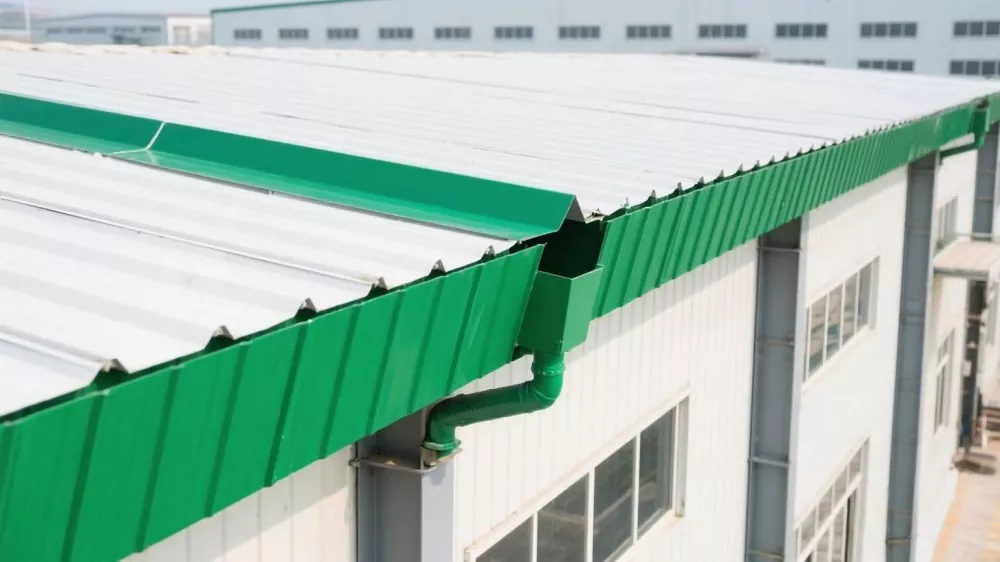

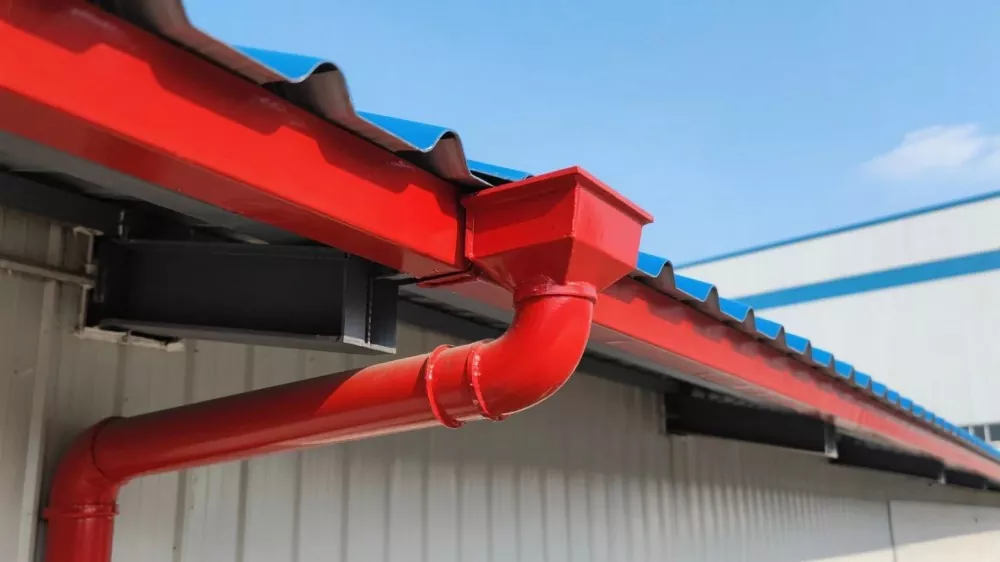

Our color-coated steel products are based on galvanized steel, coated with a weather-resistant coating, such as polyester or fluorocarbon, for both corrosion resistance and decorative effects. Available in thicknesses of 1.2-2.0 mm, they're suitable for buildings requiring a high level of aesthetic appeal.

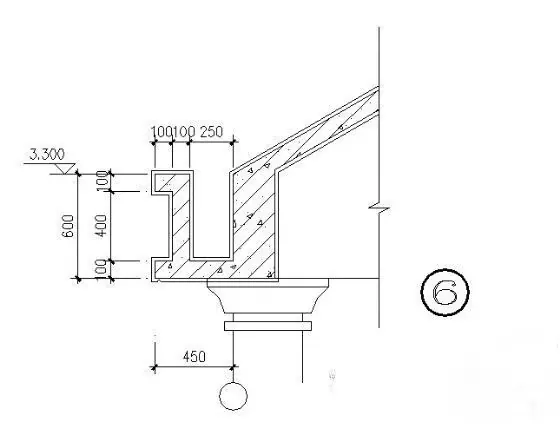

The structural form of the Steel Structure Gutter needs to be adapted to the roof slope and eaves design. Common types include U-shaped and V-shaped. The installation process is as follows:
Our Steel Structure Gutters use angle steel gutter brackets to secure them to the steel structure's eaves beams or purlins. Bracket spacing is 600-1000mm to ensure even stress distribution across the gutter.
The finished gutters are pre-sized and connected on-site using connectors or welding. Sealant is required at the junction between the gutter and the roof decking.

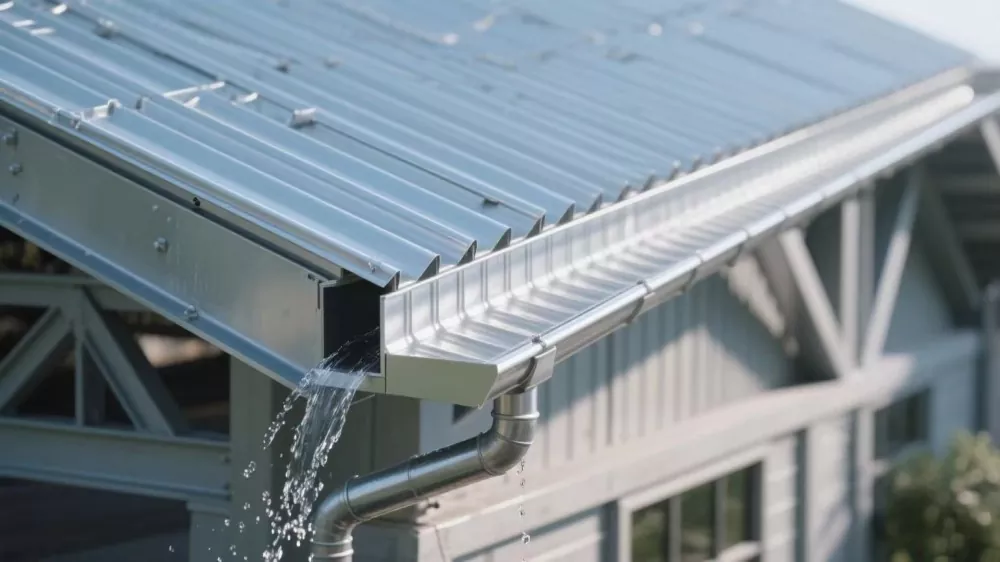

We can install a flashing above the roof decking. The lower end of the gutter should be placed below the roof decking and sealed with sealant. Drain holes should be provided at the bottom of the gutter, primarily for connection to rainwater risers.
Our Steel Structure Gutters manufacturing process includes cutting according to the drawing dimensions, bending, painting, finished product inspection, packaging, and shipping. Liweiyuan's steel structure gutters are designed and installed to ensure corrosion resistance, smooth drainage, and durability, ensuring efficient drainage.
