Multi-storey steel structure factory building is a multi-storey industrial building that uses steel structure as the main load-bearing structure. It has the following characteristics and components.
Multi-storey steel structure factory building is a multi-storey industrial building that uses steel structure as the main load-bearing structure. It has the following characteristics and components:
● High strength: Steel structure has high strength and can withstand large loads.
● Lightweight and high strength: Steel structure has a light weight, which is conducive to reducing the total weight of the building.
● Good ductility: Steel structure has a certain ductility when subjected to force, can absorb and dissipate energy, and improve seismic performance.
● Fast construction speed: Steel structure components can be prefabricated in the factory and assembled on site, greatly shortening the construction period.
● Easy to transform and expand: Steel structure factory buildings are convenient for later transformation and expansion.
● Steel column: As the main load-bearing component, it supports the weight of the entire building.
● Steel beam: Connect steel columns to form a frame structure to bear floor and roof loads.
● Roof system: This includes roof supports and roof panels, covering and protecting the interior of the Multi-Storey Steel Structure Factory Building.
● Wall system: including wall support, wall panels, etc., used to enclose and separate spaces.
● Floor system: including floor slabs, floor supports, etc., used to bear floor loads.
● Connectors: such as bolts, welds, etc., used to connect various steel structure components.
● Support system: including column support, roof truss support, etc., used to improve structural stability.
● Structural safety: ensure that the structure has sufficient strength, rigidity and stability under various loads.
● Rational function: meet the needs of production process, logistics, personnel activities, etc.
● Economic efficiency: minimize construction and maintenance costs while ensuring safety and functionality.
● Aesthetics: consider the exterior design of the building and enhance the corporate image.
oManufacturing: production plants in the automotive, machinery, electronics, food and other industries.
oLogistics warehousing: large warehouses, distribution centers, etc.
oPublic facilities: exhibition halls, gymnasiums, airport terminals, etc.
Liweiyuan multi-storey steel structure factory buildings have been widely used in modern industrial buildings due to their flexibility, economy and rapid construction. Our factory designers can provide a variety of design suggestions and plans from design drawings, design plans, construction plans, etc. according to customer needs.
Main materials
Item Material Material details
Steel frame

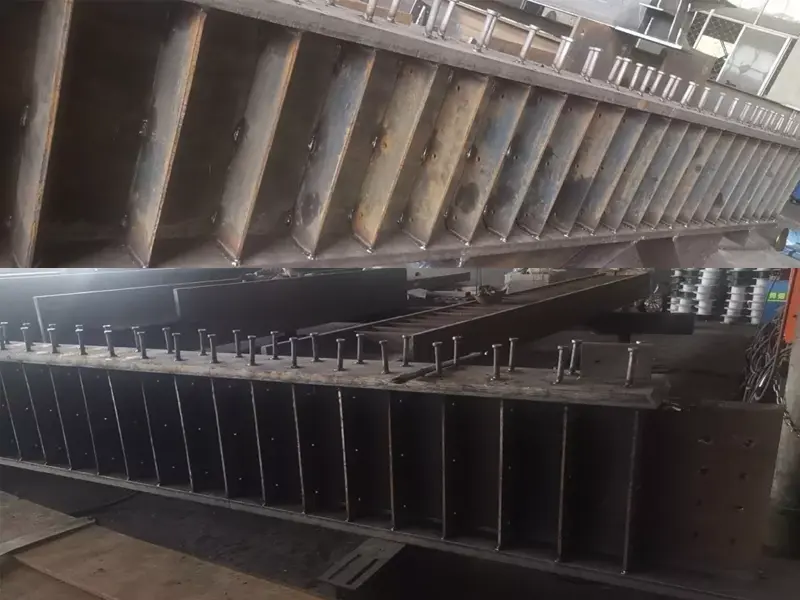

H-shaped steel column and beam Q355B, A36, A572 steel, painted or galvanized
Crane beam Q355B, A36, A572 steel, painted or galvanized
Secondary support Roof purlin Q235B C/Z steel galvanized
Wall purlin Q235B C/Z steel galvanized
Tie clip Q235, φ89*3 round steel pipe
Knee bracket Angle steel, Q235, L50*4
Roof horizontal support φ20, Q235B steel bar, painted or galvanized
Column vertical support φ20, Q235B steel bar, painted or galvanized
Casing φ32*2.0, Q235 steel pipe
Tie rod Φ10 round steel Q235
Roof and wall
Protection system Wall and roof panels Corrugated steel sheet/sandwich panel
Gutters Color steel sheet/galvanized steel sheet/stainless steel
Trim and flash Color steel sheet
Downspout PVC
Self-tapping screws
Fasteners system Anchor bolts Q235 steel
High-strength bolts Its specifications are determined according to the steel structure design.
Ordinary bolts
Nuts
Windows and doors Windows Aluminum windows
Doors Choose according to requirements, can be EPS doors, windproof doors, high-speed rolling doors, industrial sliding doors, etc.
If you are interested in our products, please let us know the following information so that we can design.
. Purpose: garage, warehouse, workshop, showroom, etc. 2
. Location: In which country will it be built?
3. Local climate: wind speed, snow load (maximum wind speed)
4. Dimensions: length * width * height
1. Are you a manufacturing plant or a trading company?
We are a manufacturing plant. You are welcome to visit us at any time. In the workshop, there is a complete and advanced system of steel structure and plate manufacturing equipment. So we can ensure good quality and competitive price.
2. How is your quality control?
Our products have passed EU CE certification, quality ISO9001:2008. We have dedicated quality inspectors to inspect the whole process of products.
3. Can you provide design services?

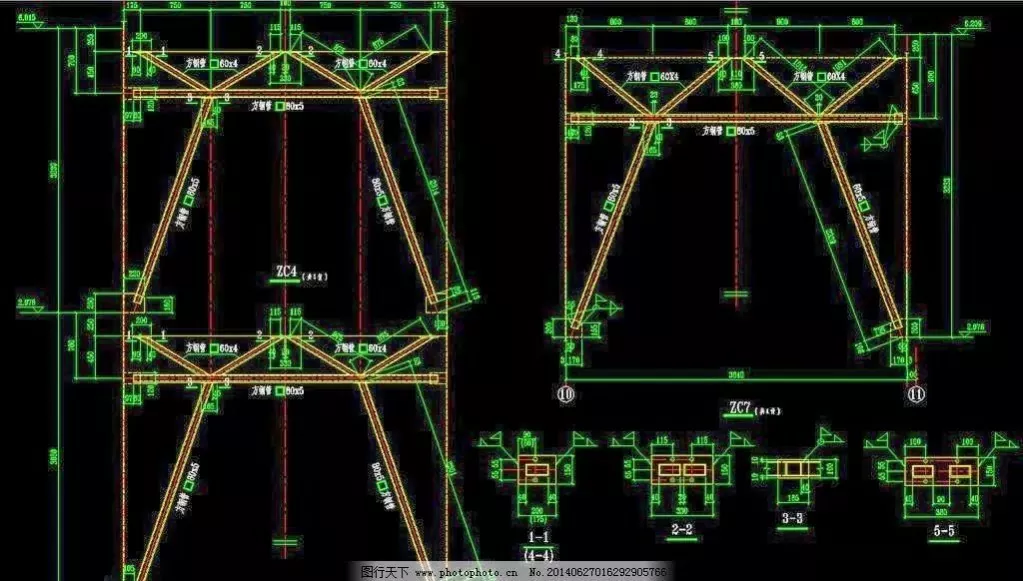

Yes, we have a team of engineers who can design for you according to your requirements. Building drawings, structural drawings, processing details and installation drawings, and let you confirm at different times of the project.
4. What is the delivery time?
The delivery time depends on the size and quantity of the building. Generally within 30 days after receiving the payment. Large orders are allowed to be shipped in batches.
5. Do you provide installation services?
We will provide you with detailed construction drawings and construction manuals to help you build and install the building step by step.
6. What is the payment term?
30% deposit and 70% balance before shipment.
7. How to get a quote from you?
You can contact us by email, phone, WhatsApp, etc. 24*7, and you will get a reply in any time
