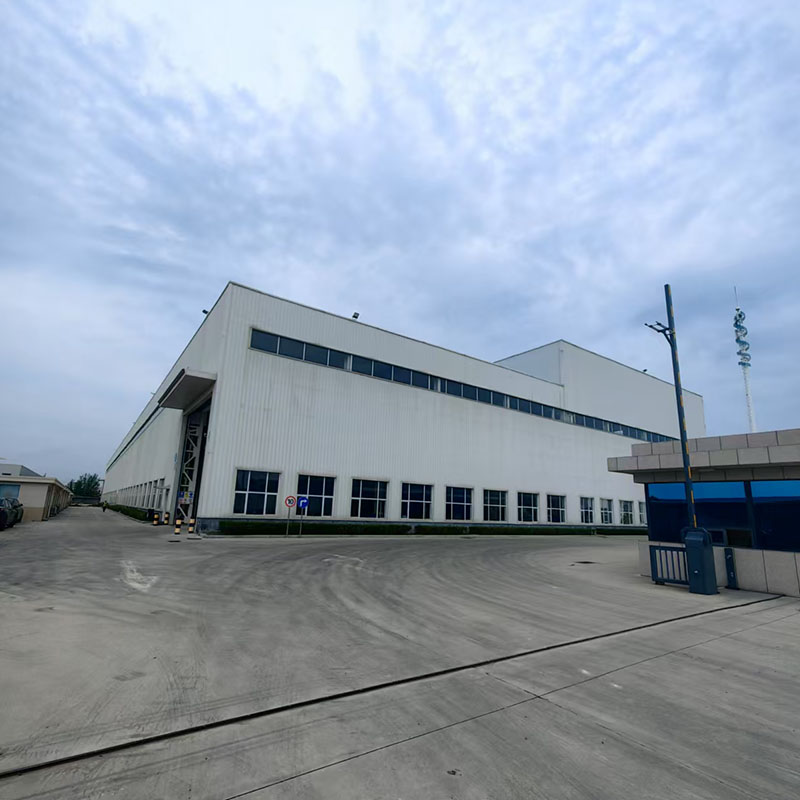

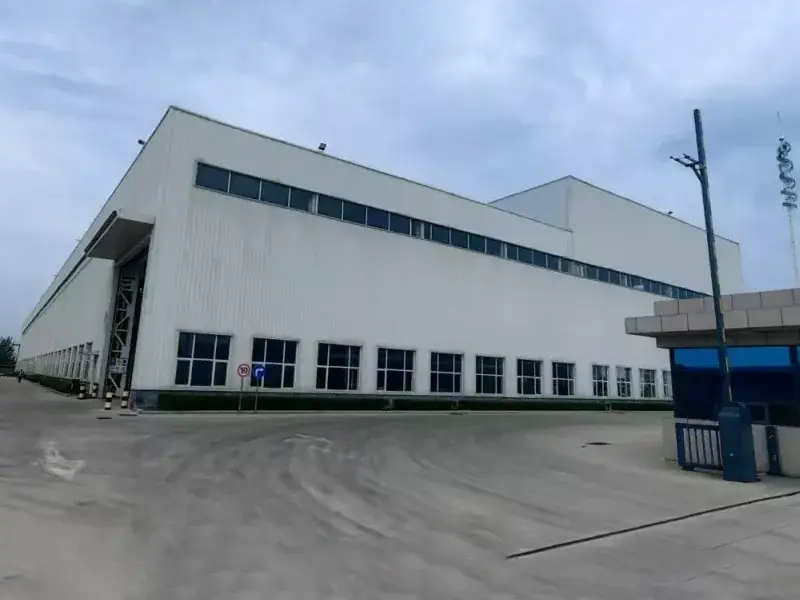

Portal steel frame steel structure factory building is a factory building constructed in the form of steel structure and portal frame. The following is a detailed introduction to the portal steel frame factory building.
Portal steel frame steel structure factory building is a factory building constructed in the form of steel structure and portal frame. The following is a detailed introduction to the portal steel frame factory building:
The main structural characteristics of the Portal Steel Frame Steel Structure Factory Building:
1. Light weight: In the portal steel frame structure, the welded I-section solid web steel frame is widely used. It has a simple cross-section, good force performance, and light weight. At the same time, the use of lightweight and high-strength roof and wall materials, as well as thin-walled steel purlins and wall frame beams, further reduces the weight of the factory building.
2. Clear force: The force system of the portal frame is simple and clear, and the force transmission path is clear, which is convenient for design and construction.
3. Quick installation: Most of the components of the portal steel frame factory building are prefabricated in the factory, and only assembly is required on site, which greatly shortens the construction period.
4. Low cost: Compared with traditional concrete structure factories, portal steel frame factories have lower costs and better economy.
When designing a portal frame factory, the following points should be noted:
1. Span and height: The span of the portal frame can be determined according to the actual use requirements, generally not exceeding 36 meters. The overall house height is between 4 and 9 meters. When designing, the matching relationship between span and height should be fully considered to ensure the stability and economy of the structure.
2. Load value: When designing a portal frame factory, the load value needs to be reasonably determined. The live load value should be determined according to the relevant design specifications and take into account the possible load conditions in actual use. At the same time, care should be taken to avoid excessive deduction of loads to ensure the stability of the factory.
3. Support system: The support system of the portal frame includes rigid tie rods, column supports and lateral supports. These support systems are crucial to ensure the overall stability of the frame. When setting the support, the force characteristics of the structure and the convenience of construction should be fully considered.
4. Detail processing: In the design of the portal frame factory, some detail processing should also be paid attention to. For example, the selection of steel beam cross-section, the design of corner braces, and the strength calculation of end plate connections. These details are of great significance for improving the overall performance and durability of the structure.
The Portal Steel Frame Steel Structure Factory Building has the following application advantages:
1. Wide range of applications: The portal frame factory is suitable for various industrial, commercial and civil construction fields, such as workshops, warehouses, exhibition halls, etc.
2. Strong aesthetics: The appearance of the portal frame factory is simple and generous, with smooth lines and good aesthetics.
3. Strong detachability: Most of the components of the portal frame factory are bolted or welded, which is convenient for disassembly and reorganization, and is suitable for enterprises that need to change sites frequently.
4. Environmental protection and energy saving: The lightweight and high-strength materials and good thermal insulation performance of the portal frame factory help reduce energy consumption and carbon emissions, which is in line with the environmental protection concept of modern buildings.
In summary, the portal frame steel structure factory has structural characteristics such as light weight, clear force, quick installation, low cost, and a wide range of application advantages and environmental protection and energy saving characteristics. During the design and construction process, factors such as span and height, load value, support system and detail processing need to be fully considered to ensure the stability and economy of the structure.

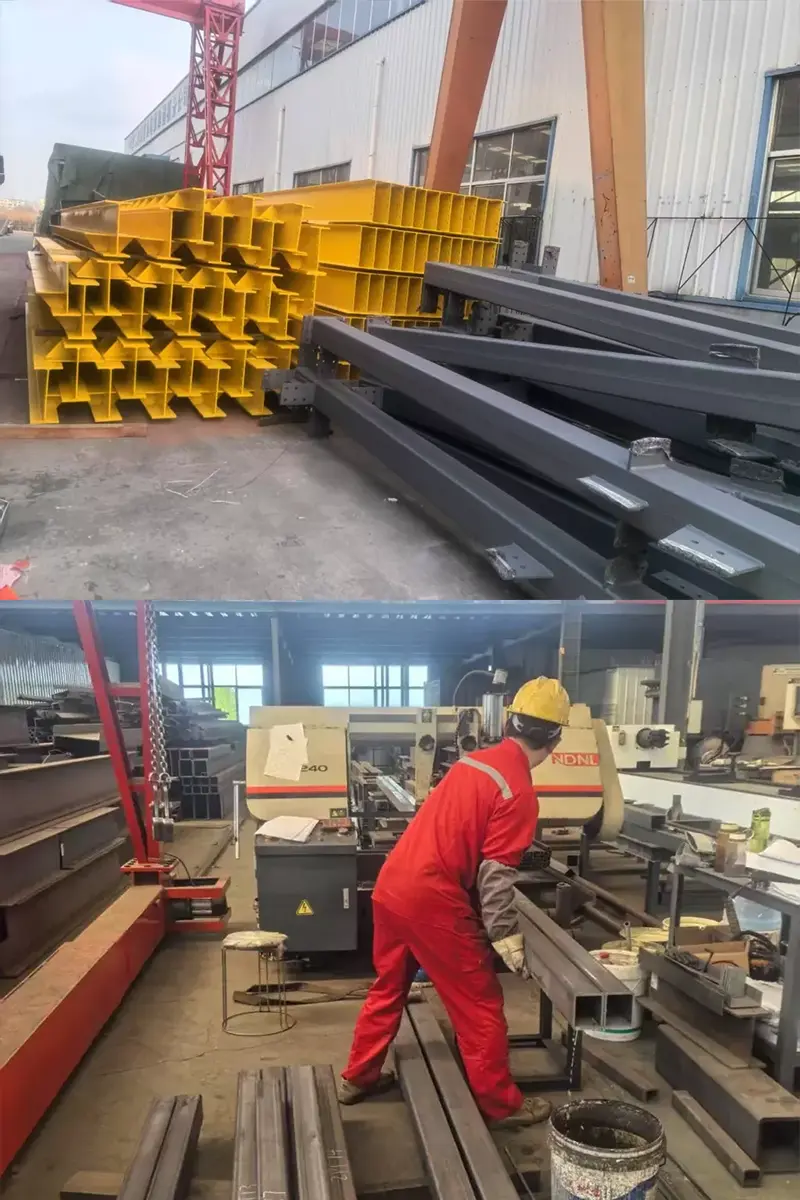

Liweiyuan Steel Structure is a professional steel structure processing plant. The various portal frame steel structure workshops it produces have many advantages such as simple construction, quick installation and economic savings.

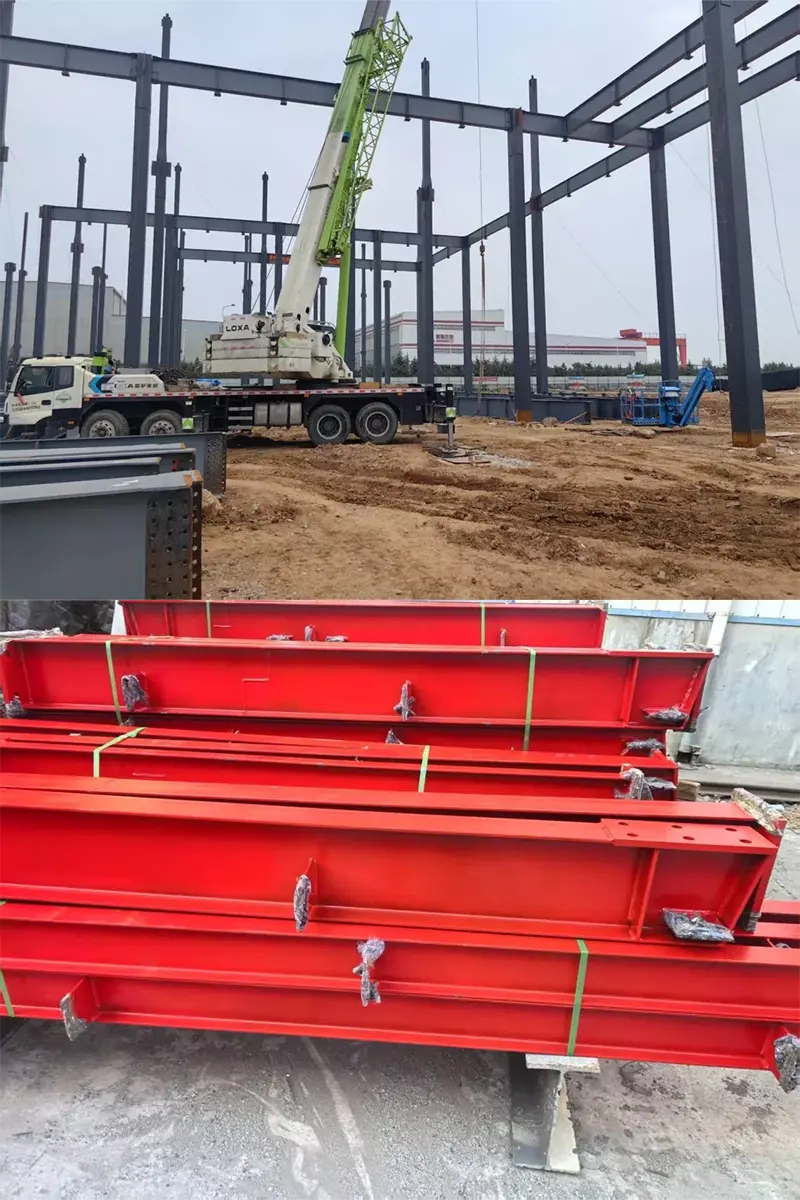

Main steel frame: H-shaped steel Q355B steel 8mm/10mm/12mm
Welding: automatic submerged arc welding
Rust removal: sandblasting
Surface treatment: alkyd paint or galvanized
High-strength bolts: 10.9 grade large hexagonal
Support system: angle brace L50x4, Q235B steel, processed and painted
Horizontal support Φ20, Q235B steel, processed and painted
Tie rod Φ89*3, Q235B steel, processed and painted
Ordinary bolts: 8.8 grade galvanized bolts
Roof purlin C/Z160*60*2.5, Q23B5 steel, galvanized
Exterior roof panel: sandwich panel or corrugated steel plate
Transparent lighting panel: 6mm thick PVC
Accessories: glass glue, self-tapping screws, etc.
Edge banding: 0.5mm thick colored steel plate
Eaves gutter: 0.8mm thick steel plate
Rainwater pipe Φ110PVC
Wall purlin C160*60*2.5, steel Q235, spray paint
Wall sandwich panel or corrugated steel plate
Accessories Glass glue, self-tapping screws, etc.
Edge banding uses 0.5mm thick colored steel plate
Doors and windows Rolling doors/sliding doors PVC/aluminum alloy/steel windows
1: Is your company a factory company or a trading company?
A: We are a factory, so you can get the best price and competitive price.
2: What are your main products?
A: Our main products are steel structures, warehouses, workshops, prefabricated houses, container houses, steel structure poultry houses, steel structure car garages, steel structure aircraft hangars, light steel villas, sandwich panels and other building materials.
3: What quality assurance do you provide? How do you control quality?
A: We have dedicated personnel to inspect products at all stages of the manufacturing process - raw materials, materials in processing, verified or tested materials, finished products and other full process quality control.
4: What should customers provide before you provide a complete quotation?
A: When we receive an inquiry from a customer, please fill in the purchase intention form to provide us with information about the steel structure building
Steel structure building size, construction purpose, layout and materials. We will design drawings based on the above information and provide a competitive quotation.
5: What kind of drawings will you provide?
A: Floor plan, elevation, section, foundation drawing, installation drawing.
6: How many colors do your sandwich panels have?
A: Off-white, ivory, blue, green, red and customized according to buyer's requirements.
