Purpose and Application
This ladder is specifically engineered for environments where fall protection is a critical requirement. It provides a fixed, secure climbing structure for personnel who need to access elevated equipment, platforms, and rooftops in industrial and commercial settings.
Primary Applications
1. Industrial Plants: Safe access to overhead cranes, conveyor systems, and maintenance platforms.
2. Power Generation Facilities: Climbing access to boilers, turbines, and cooling towers.
3. Warehouses and Distribution Centers: Access to high-bay storage, mezzanine floors, and automated racking systems.
4. Outdoor Installations: Water treatment plants, telecommunication towers, and bridge inspection points.
5. Commercial Buildings: Roof access for HVAC maintenance, signage installation, and building inspections.
The integrated guardrail system makes this ladder ideal for locations where workers frequently climb under challenging conditions, such as wet, oily, or dusty environments.
Core Safety Features and Guardrail System Design
Our Steel Ladder with Safety Guardrail System incorporates multiple safety layers that distinguish it from conventional access ladders. The guardrail system is not an add-on but an integral part of the ladder's structural design.

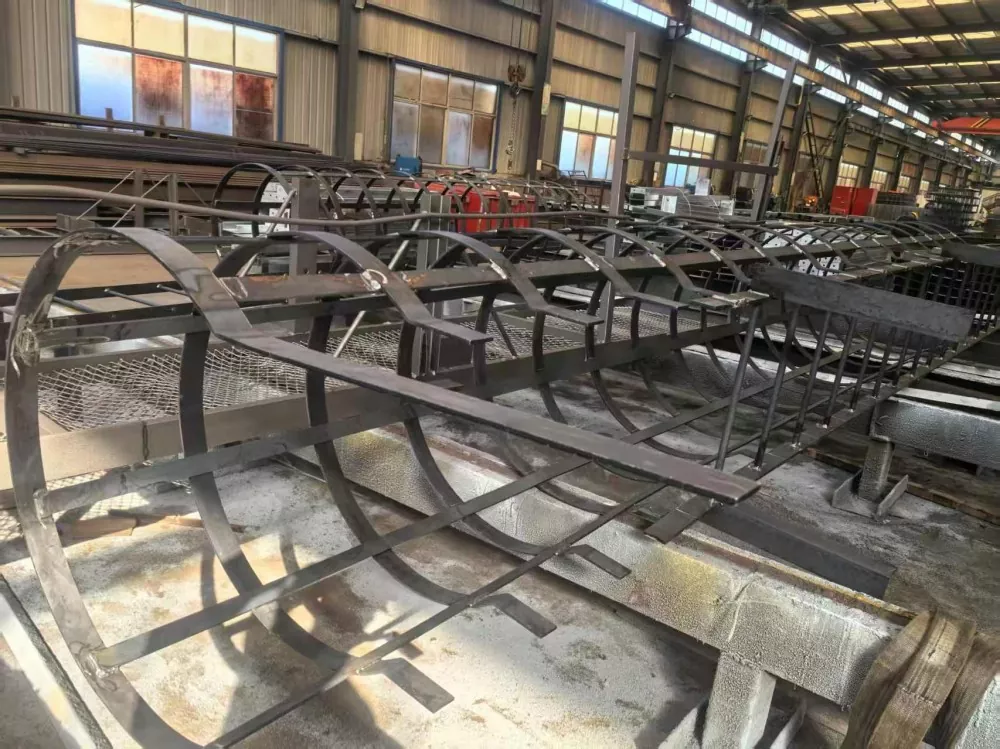

Integrated Safety Cage
1. Continuous Protection: The safety cage runs uninterruptedly from the base to the top of the ladder (or to the rest platform), providing constant fall arrest.
2. Horizontal Rings: Constructed from Ø16mm round steel, spaced 300mm to 450mm apart, offering robust structural support.
3. Vertical Reinforcement Bars: At least four Ø12mm round steel bars uniformly distributed around the cage perimeter, enhancing rigidity and impact resistance.
4. Diameter Clearance: The cage inner diameter ranges between 700mm and 800mm, providing ample space for safe climbing while maintaining close proximity for fall protection.
Anti-Slip Rungs
Rungs are fabricated from Ø20-25mm round steel with knurled surfaces or welded Ø6mm anti-slip strips (10-15mm spacing). This ensures secure footing even in wet or greasy conditions.
Rest Platforms and Top Guardrails
For ladders exceeding 6 meters, intermediate rest platforms are installed to reduce climber fatigue. The platform width is at least 600mm, with guardrails at least 1050mm high. Top guardrails of 1200mm height and 180mm kickboards are provided when the ladder top serves as a work platform.
Technical Specifications and Material Standards
LWY Steel Structure adheres to rigorous engineering standards in the production of our guardrail ladders. All dimensions and materials are carefully selected to ensure structural integrity and regulatory compliance.
Ladder Frame (Side Rails)
1. Material Options: Hot-rolled angle steel (∠50×5 or ∠63×6), rectangular tubes (60×40×3), or round tubes (Φ30×3). Selection depends on ladder height and load requirements.
2. Clear Width: Standard 400mm between rails, with custom widths from 300mm to 500mm available.
3. Wall Thickness: Minimum 3mm for tube sections; angle steel leg thickness from 5mm to 6mm.
Rungs (Steps)
1. Diameter: Ø20mm to Ø25mm round steel (22mm standard) or 30-40mm wide flat steel (3mm thick).
2. Spacing: Center-to-center distance of 250mm standard, ranging from 200mm to 300mm with ±5mm tolerance.
3. Extension: Rungs extend 25-50mm beyond side rails on each side, with end stops to prevent dislodgement.
Guardrail System
1. Installation Height: Guardrail begins 2.5 meters above ground for ladders over 3 meters high.
2. Ring Material: Ø16mm round steel, spaced 300-450mm apart.
3. Vertical Bars: Ø12mm round steel, minimum 4 bars, uniformly spaced.
4. Top Guardrail: 1200mm height with 180mm kickboard if used as work platform.
Protective Finish
All steel components receive two coats of anti-rust primer and two coats of topcoat. For outdoor use, hot-dip galvanizing with minimum 85μm zinc layer is recommended.
Ladder Beams
Material Specifications: Commonly used materials are hot-rolled steel sections, such as ∠50×5" angle steel (5 mm thick, 50 mm side length), ∠60×40×3" rectangular tubes (60 mm x 40 mm cross-section, 3 mm wall thickness), and Φ30×3" round tubes (30 mm diameter, 3 mm wall thickness). The specific material used depends on the height and weight of the ladder. For ladders over 6 meters, it is recommended to use at least ∠63×6" angle steel, or a pipe of similar strength.
Spacing: The clear distance between the inside of ladder beams is generally between 300 mm and 500 mm, with 400 mm being the most common. This allows for the width of an adult's body when climbing and ensures a secure grip.
Rungs
Material Specifications: Round steel with a diameter of 20 to 25 mm (22 mm is common) or 3 mm thick flat steel (30 to 40 mm wide) is typically used. Round steel steps must be smooth and free of burrs, while flat steel steps may be provided with anti-slip ridges.
Spacing: The center-to-center distance between steps is 200 to 300 mm, with a standard spacing of 250 mm. The deviation between any two steps should not exceed ±5 mm to ensure a consistent climbing rhythm and avoid the risk of missing steps.
Length: The length of the steps should be 50 to 100 mm longer than the clear inner distance of the ladder beam, meaning that both ends of the steps should extend 25 to 50 mm beyond the ladder beam. Any excess should be hooked or welded with a limit stop to prevent the steps from falling.
Height and Safety
Rung Height: The height of a single rung should not exceed 6 meters. For steps exceeding this height, an intermediate resting platform must be installed. The platform width must not be less than the spacing between the step beams and must not be less than 600 mm. The platform guardrail must be at least 1050 mm high, and the distance between guardrail posts must not exceed 1000 mm.
Top guardrail: If the top of the steps is used as a working platform, a guardrail at least 1200 mm high must be installed. If the top is open, a 180 mm high kickboard must also be installed.
Industrial Applications and Project References
The Steel Ladder with Safety Guardrail System is deployed across a wide spectrum of industries where fall protection is non-negotiable. LWY Steel Structure has a proven track record of delivering custom solutions for demanding projects worldwide.
Key Industry Sectors
1. Oil and Gas: Refineries, offshore platforms, and pipeline facilities require ladders with corrosion-resistant finishes and robust safety cages to protect workers in hazardous zones.
2. Chemical Processing: Plants with aggressive atmospheres benefit from our hot-dip galvanized ladders, which resist chemical corrosion while providing secure access to reactors and storage tanks.
3. Mining and Aggregates: Heavy-duty guardrail ladders are used in processing plants and maintenance towers, where dust and vibration demand extra-strong construction.
4. Power Generation: Coal, gas, and renewable energy facilities use our ladders for boiler access, wind turbine towers, and hydroelectric dam inspection.
Recent Project Example
A European petrochemical company recently ordered 45 units of our 7.5-meter high guardrail ladders for their refinery expansion project. Each ladder was custom-designed with 600mm clear width, anti-slip rungs, and a full safety cage with intermediate rest platforms. The ladders were hot-dip galvanized and delivered within 35 days, meeting the client's stringent quality and timeline requirements.
Certifications, Quality Control, and Compliance
LWY Steel Structure operates under an ISO9001-2016 certified quality management system, ensuring that every Steel Ladder with Safety Guardrail System meets the highest standards of safety and durability.
Quality Assurance Process
1. Raw Material Inspection: Chemical composition and mechanical properties of all steel are verified before production.
2. In-Process Inspections: Dimensional checks, weld inspections, and surface quality assessments are conducted at every stage.
3. Final Testing: Completed ladders undergo load testing, guardrail integrity checks, and coating thickness measurement.
International Certifications
1. CE Certification: Our ladders comply with EN1090, confirming structural performance and safety for EU markets.
2. ISO 9001:2016: Validates our quality management system and continuous improvement processes.
3. Material Traceability: Full documentation of steel grades, weld procedures, and inspection records are provided with each shipment.
All test data is archived and available for client review, ensuring transparency and accountability.
Why Choose LWY Steel Structure as Your Guardrail Ladder Supplier
As a professional steel structure factory with over 20 years of experience, LWY offers distinct advantages that make us the preferred partner for industrial access equipment.
Competitive Differentiators
1. Custom Engineering Capability: We provide tailored designs for ladder width, height, cage configuration, and platform placement to match your exact site requirements.
2. Superior Corrosion Protection: Our hot-dip galvanizing process (85μm minimum zinc layer) ensures long service life even in coastal or chemically aggressive environments.
3. Cost-Effective Pricing: As a direct manufacturer with an in-house production capacity exceeding 60 tons per day, we offer competitive factory-direct pricing.
4. Reliable Lead Times: Standard delivery is 30 days from order confirmation, with expedited options available for urgent projects.
5. Comprehensive Documentation: We provide detailed installation drawings, structural calculations, and certification packages to facilitate local approvals and inspections.
6. After-Sales Support: Our technical team offers remote installation guidance and responds to quality inquiries within 24 hours, ensuring minimal disruption to your operations.
Packaging, Shipping, and Installation Support
LWY Steel Structure ensures that your Steel Ladder with Safety Guardrail System arrives at your site in perfect condition, ready for efficient installation.
Packaging and Protection
1. Steel Bundling: Ladder components are securely bundled with steel strapping to prevent shifting during transport.
2. Edge Protection: Protective corner guards and foam padding are applied to prevent surface damage.
3. Marine-Proof Wrapping: For sea freight, we use waterproof shrink-wrap and desiccant bags to protect against moisture ingress.
4. Marking and Labeling: Each bundle is clearly labeled with order number, item description, and weight for easy identification.
Shipping Logistics
We cooperate with reputable freight forwarders to offer both FCL (Full Container Load) and LCL (Less than Container Load) shipping options. Delivery terms include FOB, CIF, and DAP, with flexible arrangements to suit your project schedule.
Installation Support
Each ladder shipment includes detailed construction drawings, step-by-step installation instructions, and torque specifications for bolted connections. Our technical support team is available for video consultations to assist with any installation challenges, ensuring a smooth and safe setup process.
Frequently Asked Questions
Q1: At what height does the safety guardrail system become mandatory for the steel ladder?
A1: According to international safety standards and LWY's design practice, a safety guardrail system is required for ladders exceeding 3 meters in total height. The guardrail should be installed starting at 2.5 meters above the ground or base level. The safety cage must extend continuously to the top of the ladder or to the intermediate rest platform.
Q2: What materials are used for the guardrail rings and vertical bars?
A2: The horizontal rings are constructed from Ø16mm round steel, with spacing between rings of 300mm to 450mm. The vertical reinforcement bars are made of Ø12mm round steel, with at least four bars uniformly spaced around the cage perimeter. These materials provide excellent strength-to-weight ratio and corrosion resistance when galvanized.
Q3: Can the ladder be installed on uneven ground or with a non-standard mounting angle?
A3: Yes, LWY Steel Structure offers customized mounting solutions for various site conditions. We can design adjustable base plates, stair stringers, or inclined ladder configurations to accommodate uneven ground or angled installations. Please provide your site-specific dimensions and we will engineer a suitable solution.
Q4: How is the ladder anchored to the building structure?
A4: Our ladders are typically anchored using M16 or larger expansion bolts, or through embedded steel plates cast into the concrete. The embedded plates are at least 10mm thick with Ø12mm anchor rods, embedded to a minimum depth of 150mm. For steel structures, direct welding or bolting to existing beams can be arranged. We provide detailed anchoring recommendations with each shipment.
Q5: What is the standard lead time for a custom guardrail ladder?
A5: For custom orders, the standard lead time is 30 days after receipt of payment and final approval of engineering drawings. For non-customized standard sizes, we may be able to deliver within 15-20 days. Bulk orders can be shipped in batches to meet your project milestones.
Q6: Does LWY offer warranty and post-sale service for these ladders?
A6: Yes, we provide a comprehensive warranty against material and manufacturing defects. If any quality issue is reported, we commit to responding within 24 hours and providing a solution within 48 hours. Depending on the nature of the issue, we offer free rework, reshipment, or compensation as per the contract terms. Our after-sales team is always ready to assist.
Partner with LWY for Superior Safety Guardrail Ladder Solutions
LWY Steel Structure is your trusted partner for high-quality access equipment that prioritizes worker safety and operational efficiency. Our Steel Ladder with Safety Guardrail System combines robust engineering, premium galvanized materials, and internationally recognized certifications to deliver a product that stands up to the most demanding industrial environments. With extensive customization capabilities, competitive pricing, and a global track record, we offer a complete access solution that meets your project requirements and exceeds your expectations. Contact us today to discuss your specifications and receive a tailored quotation.
